Self-Contained Compactors
Self-contained compactors in 20, 30 and 35 yard sizes or customized, with a cross-cylinder ram, AR steel wear surfaces and a 10 HP power unit. Built in Waterbury, CT, by a team with a combined 50+ years in the waste industry.
Specifications
Body and Container
Body and Container
Body and Container
Main rails 1/4 in.; floors 7 ga; crossmembers 16 in. on center; bulkhead and sides 7 ga; top and tailgate 10 ga.
Ram and Packer
Body and Container
Body and Container
Ram face 3/8 in. A36; ram sides 1/4 in.; ram bottom 1/2 in. AR; ram top 1/4 in. Packer floors 1/2 in. AR; packer sides 1/4 in.; side support 14 x 1/4 in.
Hydraulics and Power
Hydraulics and Power
Hydraulics and Power
Two XHD cross cylinders with brass bushings: 4-1/2 in. bore, 2-1/2 in. rod, 45-3/4 in. closed, 83 in. extended. 10 GPM pump; cycle time 20 sec out, 18 sec in; 11 in. ram penetration; 58 x 38 in. clear top opening; 10 HP motor, 208/230/460 V.
Sizes and Options
Hydraulics and Power
Hydraulics and Power
20, 30 and 35 yard, or customized. Options: single-phase voltage, bio hydraulic oil, guide rails, ozone odor control system, doghouse with door on one or both sides, and hopper setups. Full dimensions are on the spec sheet.

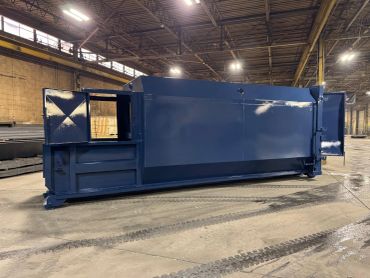

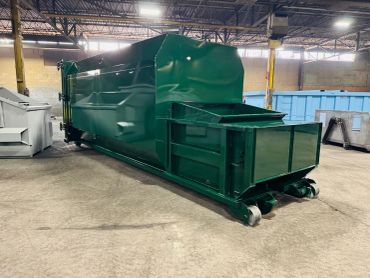

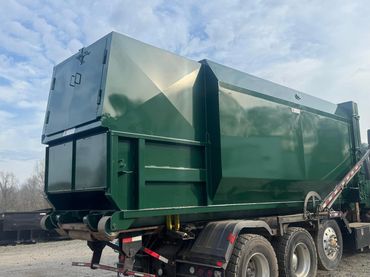

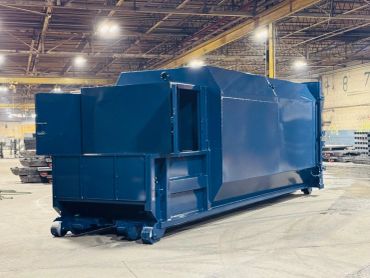

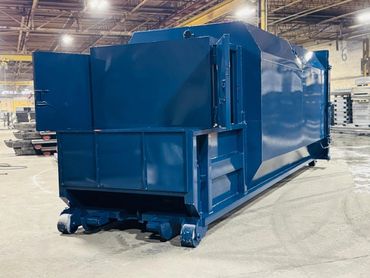

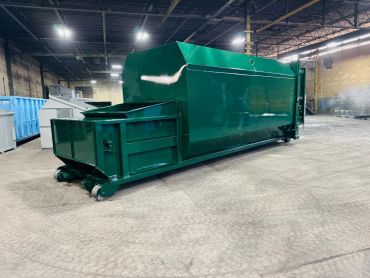

Recent Self-Contained Compactor Builds
Request a Quote
Talk to a Builder
Not sure which size, duty class or door style fits the route? Call the shop at 203-456-8811, Monday to Friday, 7 am to 4 pm.
